Small Loader,(WSM976T42)

No.

Item  Name

unit

WSM976T42

1

The Whole machine size

Length(fork on ground)

mm

     10440

2



width

mm

3450

3



height

mm

3675

4

Working device geometry parameters

Curb weight

Kg

43500

5



Max traction force

KN

265

6



Fuel capacity

L

425

7



Hydraulic tank capacity

L

500

8



Axle base

mm

4500

9



Wheel track

mm

2690

10



Min turning Radius

mm

9061

11



Gradeability (no-load/Full load)

%

30/14

12



Min.ground clearance

mm

400

13

Working device geometry parameters

Max.Lifting  height

mm

3200

14



Fork standard size

mm

1600*280*150

15

work capacity

Load center distance

mm

1000

16



Rated Load  capacity

Kg

42000

17



Max lift capacity

kg

47000H.1.6m

18



Rated power

Kw/rpm

213

With the improvement of the new technology, the product structure and parameters will be continuously improved ,if the sample information is not in conformity with the physical object, pls refer to the object.

Productname:

Small Loader,(WSM976T42)

Product Number:

Product Introduction:

Product specification

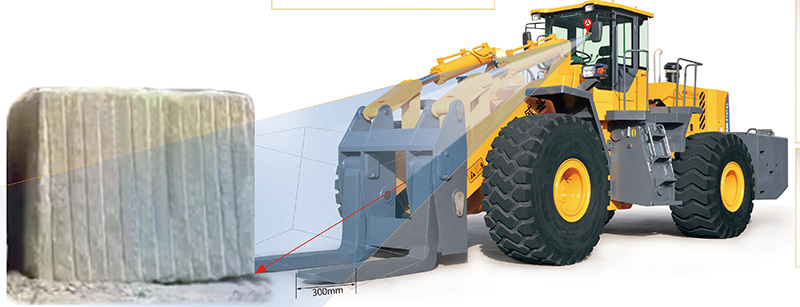

wheel loader WSM976T42 The driver A point is the height of 700mm away from the seat (normal sitting position). When the fork is flat ground,horizontal, we can see the fork and fork tip fork into 300mm way.In the lifting process, the driver can see the tip and fork, it is safe to work.wheel loader WSM976T42

 wheel loader WSM976T42 standard configuration

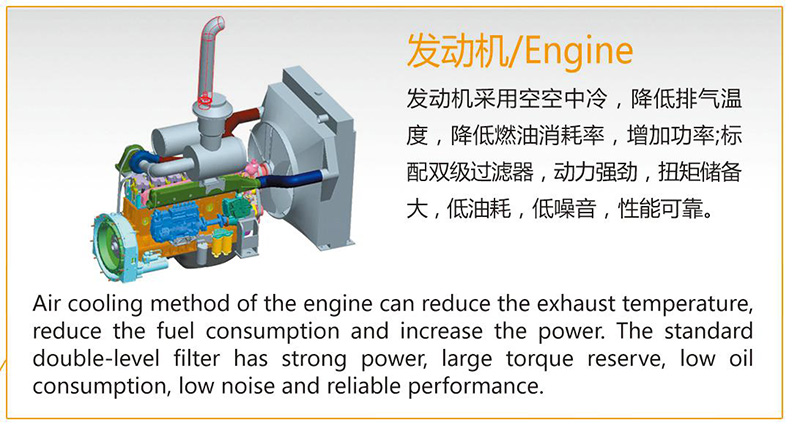

wheel loader WSM976T42 l Engine: China Steyr Tier 3 engine

l Transmission: ZL80

l Operation way: Pilot control

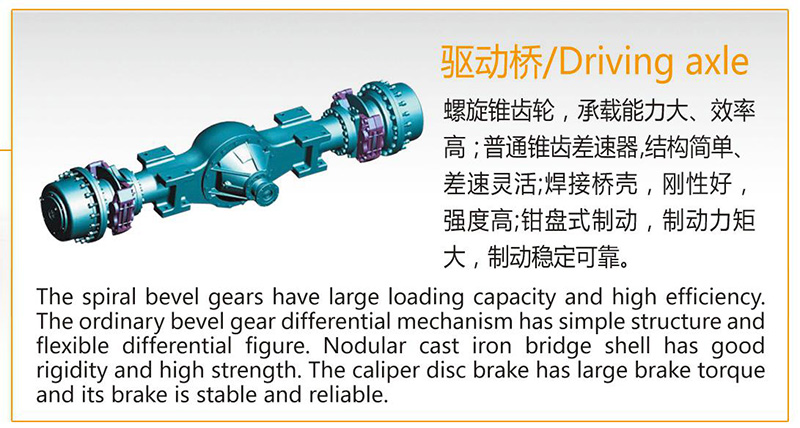

Drive axle: WSM heavy duty drive axle.

Cooling system: Large water tank,oil cooler

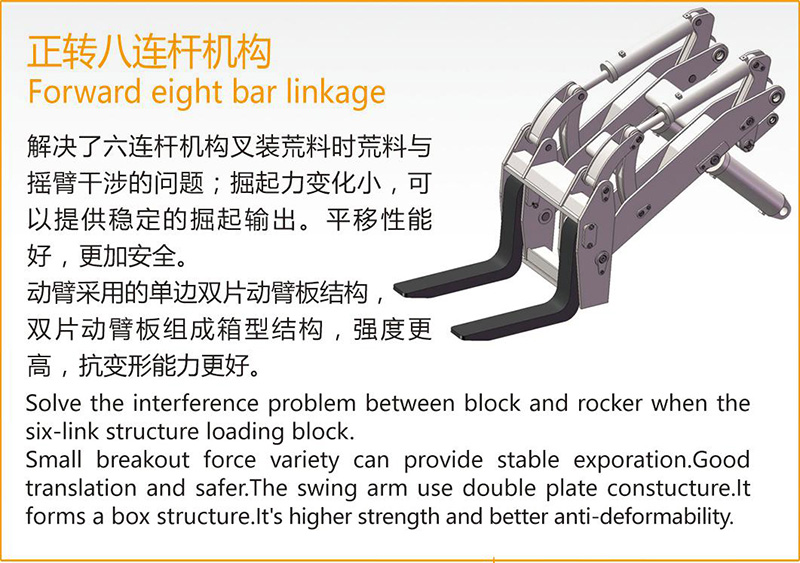

Attachment: forkl

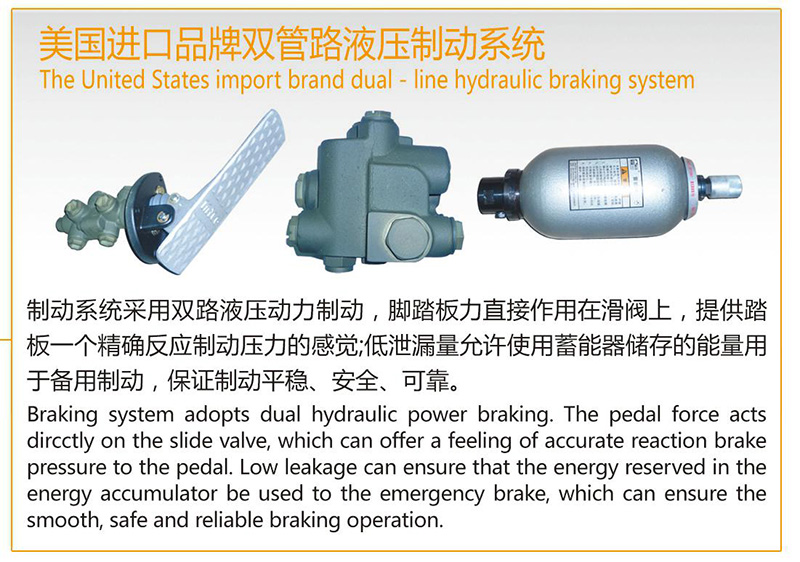

The braking systemGas cap oil brake system

wheel loader WSM976T42 Optional parts

l Tyre protection chain

l Quick  exchanged or easy-exchange bucket

l Air-conditional

l Cummins engine

l Vehicle’s terminal system (including GPS positioning, real time monitoring ,machine info)

 wheel loader WSM976T42 l  Distance fault diagnostic system





Note:Due?to?technical?innovations,?above all are?for reference only,all information subject to finnal confirmation!
